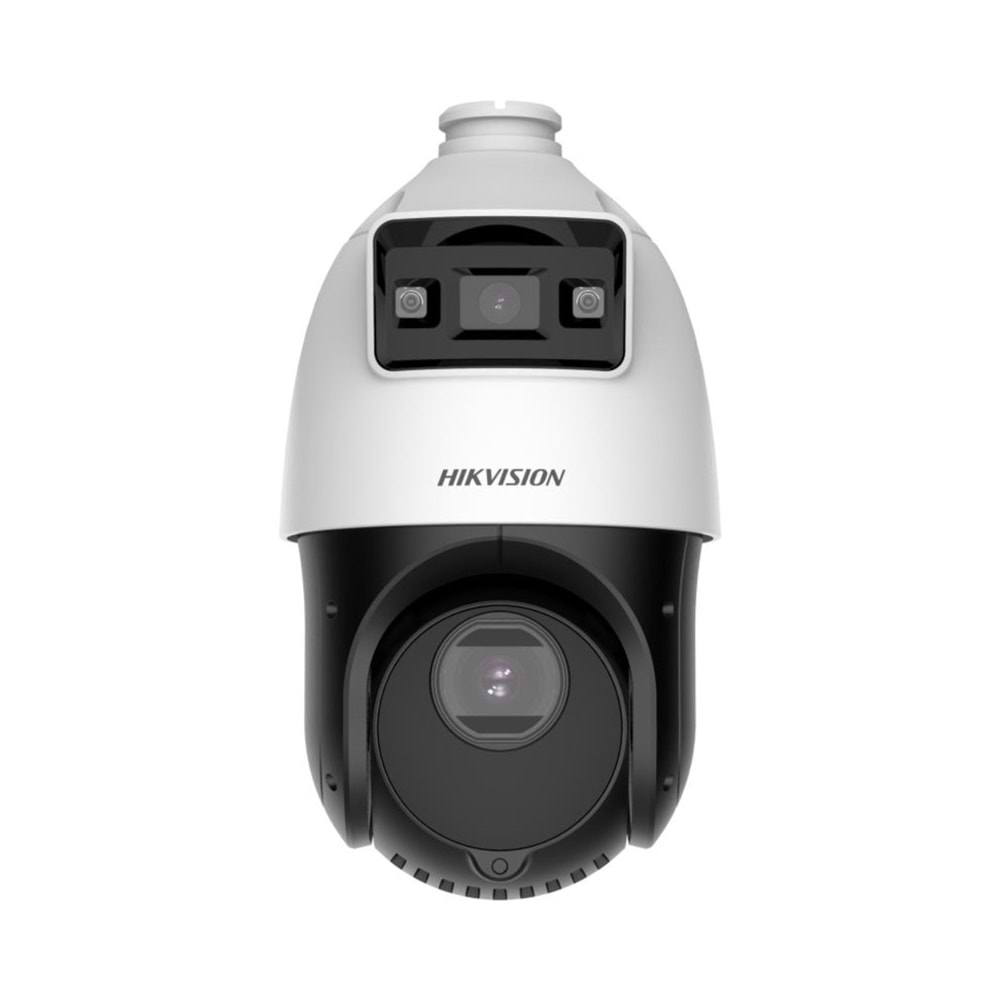

Hikvision DS-2SE4C425MWG-E/14(F0) 4MP 25x IR PTZ Network Speed Dome Kamera

Kategori     PTZ IP Kamera
Kamera Tipi     Dome
Kamera Çözünürlüğü     4MP
Lens Tipi     Optik
Beyaz Işık     Var
WDR     120dB WDR
Üretici Kodu     DS-2SE4C425MWG-E/14(F0)
Görüntü Sensörü     [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Çözünürlük     [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Lens     [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
Min. Aydınlatma     [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Bakış Açısı     [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view:
Deklanşör Hızı     1 s to 1/30,000 s
Gece&Gündüz     ICR
Video Sıkıştırma     H.265||H.264||MJPEG
Ana Akış Maks. Kare hızı     [Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 ×
Alt Akış Maks. Kare hızı     [Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Görüntü Ayarı     sharpness, saturation, brightness, contrast
Görüntü Geliştirme     BLC,HLC,3D DNR
İlgi Bölgesi (ROI)     8 fixed regions for each stream
Alarm Tetikleyici     1 alarm input, 1 alarm output
Network Protokolü     IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
Materyal     ADC12
Hafıza Kartı     Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Çalışma Koşulları     -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
Power Supply     12VDC, PoE+
Güç Tüketimi Ve Akım     Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
Boyut ve Ağırlık     Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Approx. 2.4 kg (13.2 lb.)
