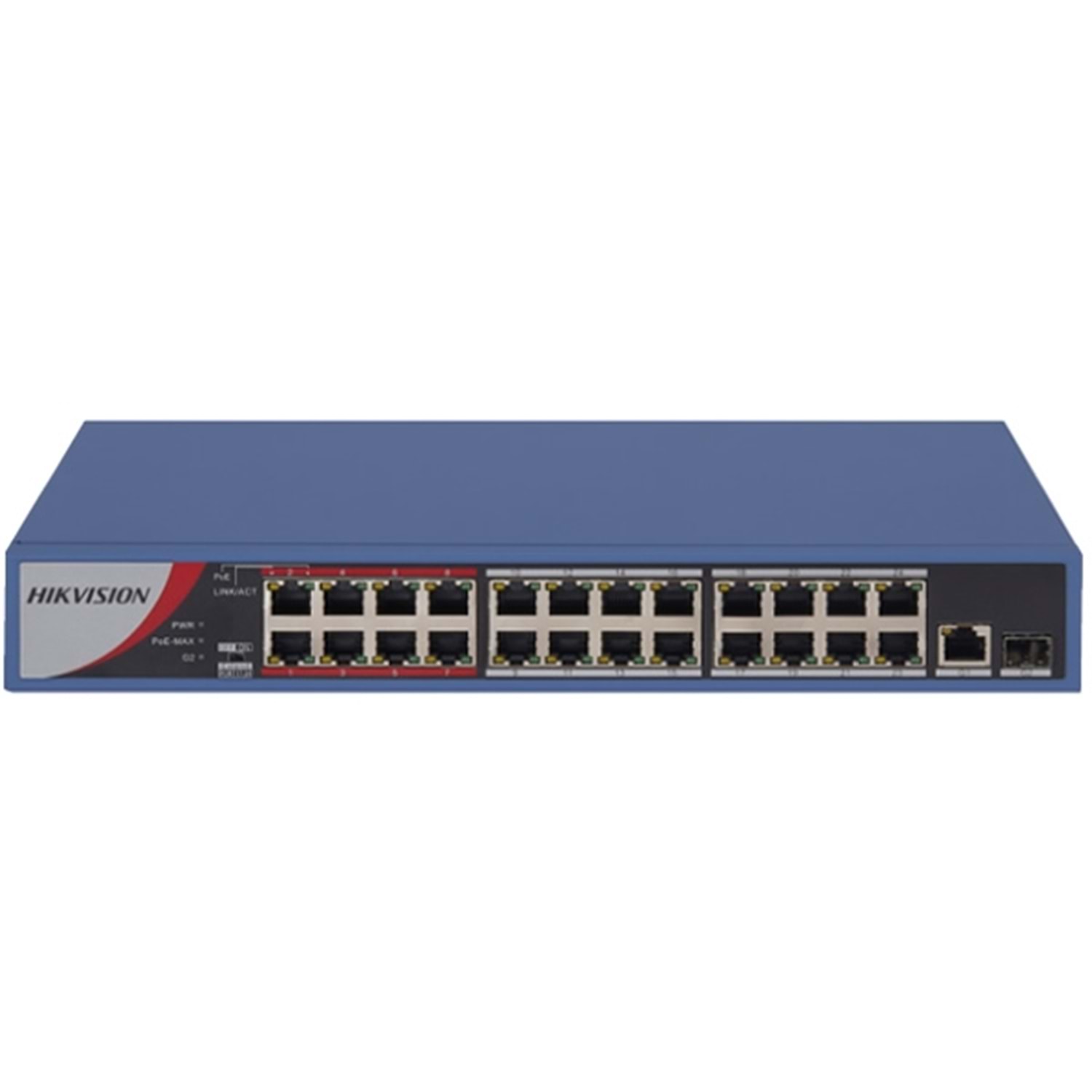

Hikvision DS-3E0326P-E/M(C) 24 Port PoE 250W 1xGigabit + 1xSFP Switch

24 Port Fast Ethernet Unmanaged POE Switch

    Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
    Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
    4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
    6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
    Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

    PoE Power Supply
    PoE StandardIEEE 802.3af, IEEE 802.3at
    PoE Power Pin

    Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

    Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
    PoE PortPorts 1 to 24
    Max. Port Power30 W
    PoE Power Pudget230 W
    Max. Power Consumption250 W

    Network Parameters
    Port Number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
    Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Forwarding ModeStore-and-forward switching
    Working ModeStandard mode (default); Extend mode
    High Priority PortsPorts 1 to 8
    Ports For Long-Distance TransmissionPorts 17 to 24
    MAC Address Table4 K
    Switching Capacity8.8 Gbps
    Packet Forwarding Rate6.547 Mpps
    Internal Cache2.75 Mbits

    General
    ShellMetal material
    Gross Weight3.33 kg (7.34 lb)
    Net Weight2.55 kg (5.6 lb)
    Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
    Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
    Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    Operating Humidity5% to 95% (no condensation)
    Storage Humidity5% to 95% (no condensation)
    Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
    Power Consumption In Idle20 W

    Approval
    EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
    ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
